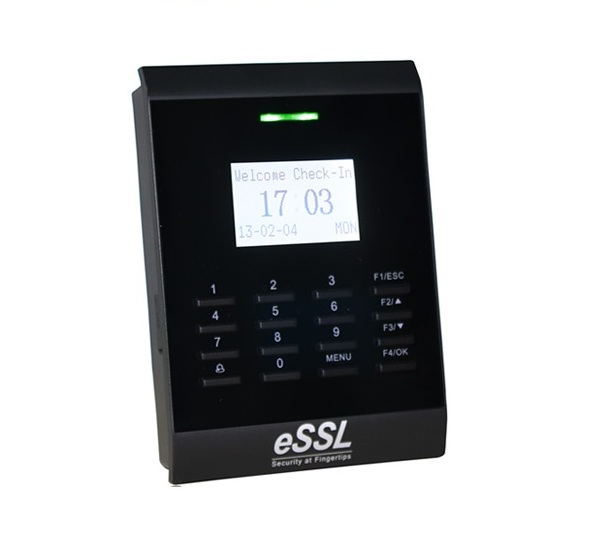

ESSL SC 405

ESSL SC 405 is specially designed for the international high terminal access control market to substitute multi door controller concept.These are particularly designed for IT infrastructure as the companies follow very centralized and systematic processes which are easily enabled through devices like ESSL SC 405. Due to its higher card capacity of about 30,000 the device is best suited for huge companies.ESSL SC 405 is one of the best machines including access control with integrated attendance and also provides software that can record the time and attendance of every employee in the organization.

Technical Specification
Storage CapacityCard Capacity                         30,000
 Transaction Storage50,000
 Card ReaderYes
 CPU32bit Microprocessor
BiometricAlgorithm VerNO
 FAR<=0.0001%
 FRR<=1%
 Identification speed <=0.1 sec
Audio/VisualDisplayColor TFT
 Keypad4 x 4 Keypads
 LED IndicatorGreen/Red
 Schedule Bell/SpeakerMini Speaker
CommunicationCommunicationRS232/485, TCP/IP
 Push dataNO
 Standard featuresNO
Power & EnvironmentPower Supply12V DC,  2Amps / 3Amps
 Operating Temperature0oC to 45oC
 Operating Humidity20% -80%
 Dimension143 x 95.5 x39.5mm
Access ControlWiegandIn & Out
 RelayInbuilt relay to communicate with Locks, Alarms & Door Sensors
 Support Fire AlarmYes
 Door SensorYes
 Anti PassbackYes
 Door BellYes
Exit ReadersSupport exit readersKR 500E / Exit Button / 101 HE,50 time zones, 5 groups, 10 time combinations
OptionalBatteryNO
 Card readersYes
 CommunicationNO
 PrinterNO
Compatibility Compatible with Multi Door controllers via weigand
  External Speaker output available (Optional)
  External Bulb output available (Optional)
Compatible Software & SDK Smart Office Suite Desktop
  SDK for desktop applications
  Web based Device Manager/ePush server using Push data. Helps developers & integrators
  Supports 3rd Party Payroll/HRMS/ERP and Other applications
Major Applications Time & Attendance , Canteen management, School attedance,
  Production Management, Gym & clubs
